Aluminum heat sinks are ideal for thermal management in many devices. Learn how to enhance heat sink performance and reduce costs through DFM optimization.
Chloe
Published Date: 2026/1/12
While extrusion and die casting are common for high-volume, simple heat sinks, CNC machining is the primary choice for performance-critical applications. CNC allows for complex geometries, such as non-constant cross-sections or multi-directional fins, that cannot be achieved through traditional forming. CNC machining a heat sink is an ideal choice for rapid prototyping and small-batch production where speed and precision are paramount.
Saying that, high volume CNC machining is also preferred if there is no frequent design changes and need complex heat sinks with high precision.
CNC machining also facilitates the integration of mounting holes, precision threads, and internal cavities within a single setup. This reduces secondary operations and ensures high positional accuracy for critical mounting interfaces. Fsproto offers precision CNC machining with tolerances as tight as ±0.003 mm to meet the most demanding thermal requirements.
Heat sink efficiency depends primarily on usable surface area, but CNC machining imposes strict geometric limits on how that area can be created. Overdesigning fins—making them too thin or too tall—increases tool deflection and machining time, which directly inflates your Total Cost of Ownership (TCO).

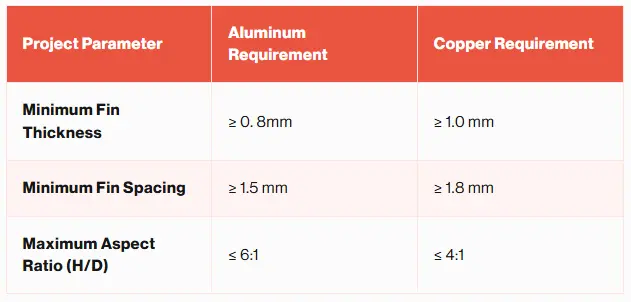

Aluminum and copper behave differently under the stress of a cutting tool. Aluminum is lighter and easier to machine, whereas copper is prone to burring and tool adhesion. Use the following table to guide your initial design phase:

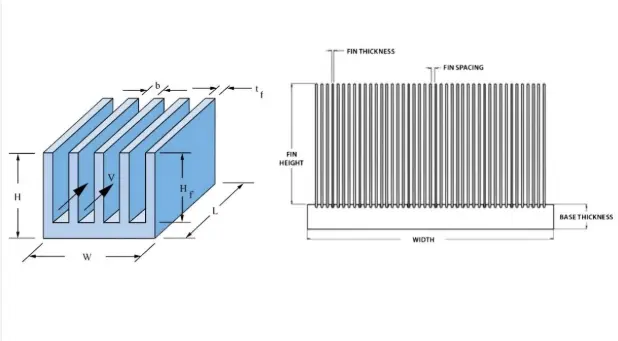

The aspect ratio (height to width) is the most critical factor in CNC heatsink cost. High aspect ratios require longer, more flexible tools that must run at slower feeds and speeds to avoid breakage. If your design exceeds a 6:1 ratio in aluminum, you risk significant vibration and poor surface finish.Pro Tip: If your thermal requirements exceed the surface area that CNC can provide within these limits, consider a hybrid design or contact our engineers for a design review.
Material selection has a direct impact on the heat sink function and performance.Therefore, a right heat sink material must balance thermal conductivity with weight and machinability. While copper offers superior thermal performance, its manufacturing complexity often leads engineers back to aluminum for the majority of the assembly.
Engineering Comparisons
Copper is often used only where it is most effective: the heat source interface. A common high-performance strategy is the Hybrid Design, where a copper base plate is integrated with aluminum fins. CNC machining allows for the precise pocketing and interface tolerances required to make these hybrid assemblies efficient.
Micro-tolerances are the primary requirement in any heat sink in electronics, ranging from 0.01mm to 0.005mm. It is due to the compact designs of electronic devices. Another factor to consider is thermal-driven DFM. It involves optimizing the heat sink geometry for better convection and conduction rates.
Consequently, the thermal DFM model focuses on the end performance requirements of heat sinks. For instance, the performance of a heat sink SSD in a gaming PC directly impacts the user experience, and here DFM must be optimized for high transfer rate while being compact in size. Other examples include a MOSFET heat sink for a power transistor, a heat sink laptop, and cooling sensor heatsinks in an industrial line.

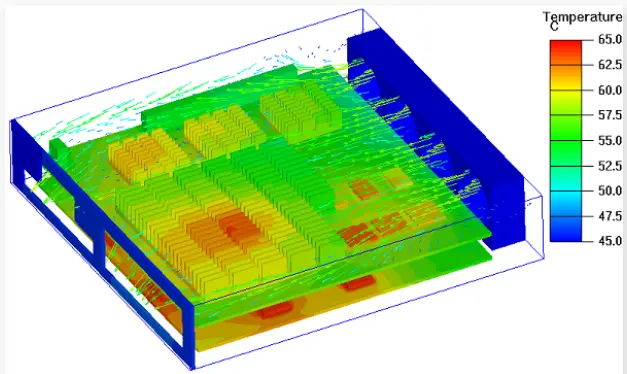

Designer and engineers uses computer software like ANSYS to run the thermal simulation. It helps validate that geometry is CNC machinable and provides optimal thermal performance.
